An image of parts

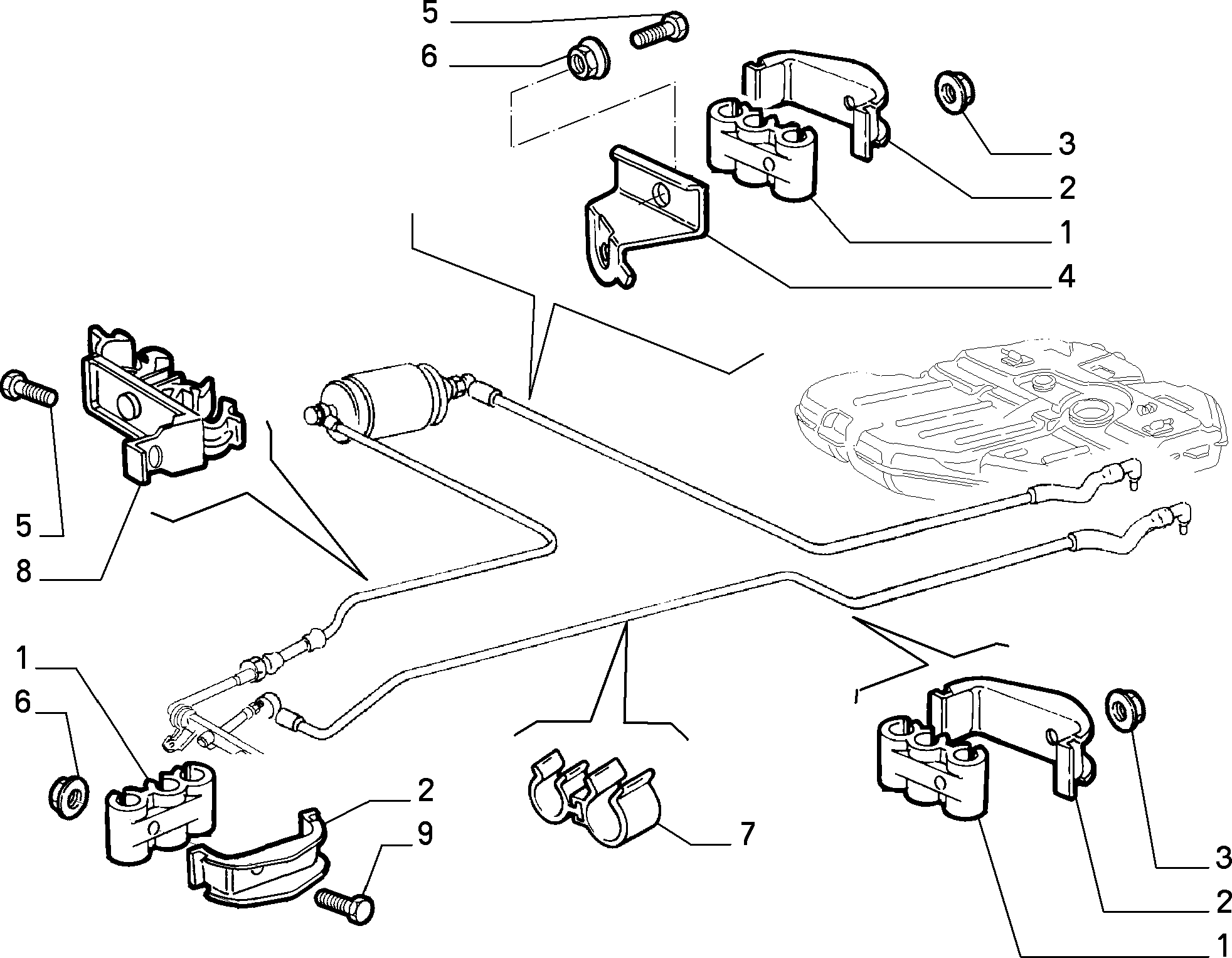

10201/00 - FUEL TANK PIPING (Var.:1/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:2/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:3/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:4/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:5/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:6/Rev.:0)
codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 7699202 RUBBER RING
03
2 82427411 BRACKET
03
3 12578115 NUT
02
4 7785582 BRACKET
01
5 10704324 SCREW M6X14
02
6 82436033 RIVET
02
7 7637649 CLIP
  • C1530
01
8 46449829 BRACKET
01
9 10872914 SCREW M6X25
01
