An image of parts

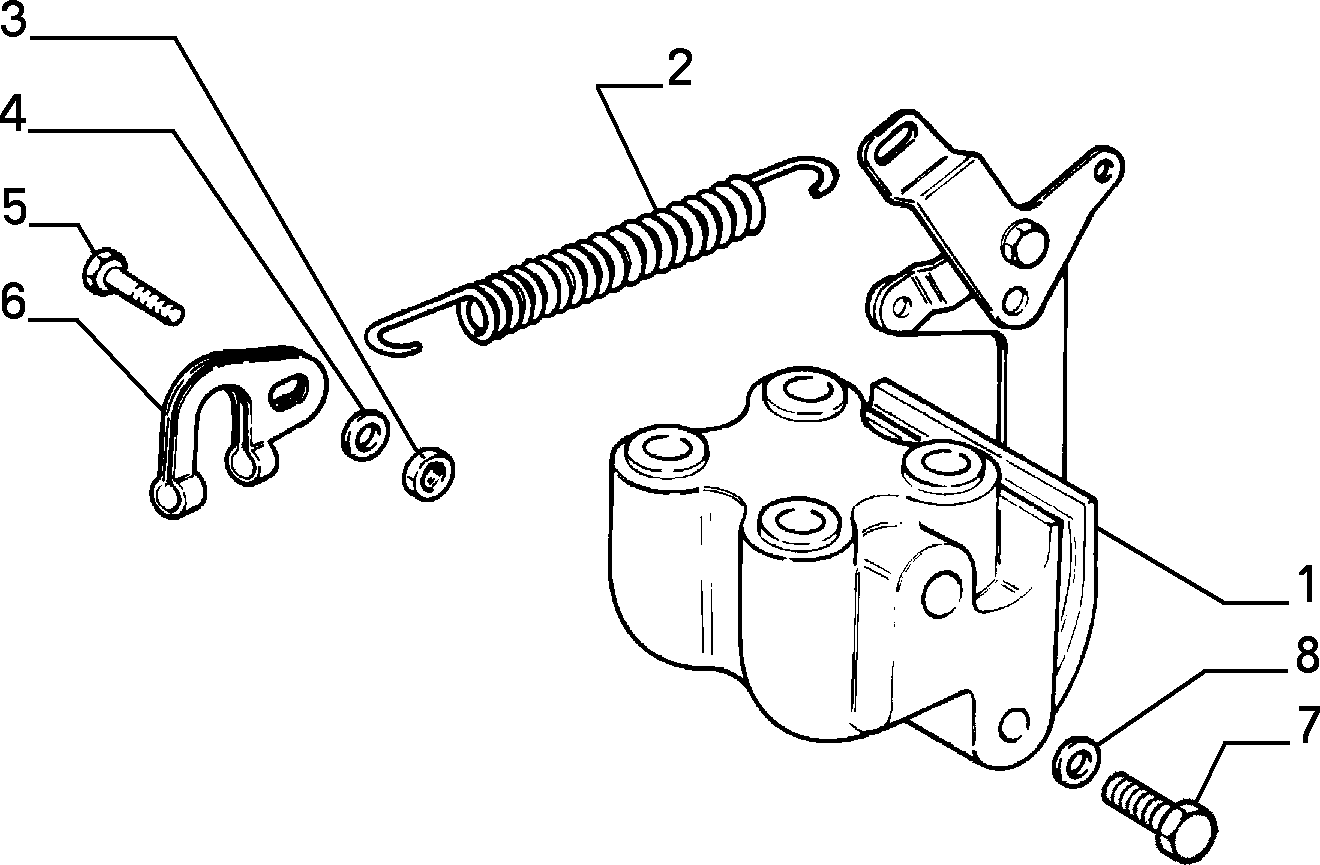

33105/00 - HYDRAULIC BRAKE CONTROL WITH ANTISKID (Var.:1/Rev.:0)
An image of parts
33105/00 - HYDRAULIC BRAKE CONTROL WITH ANTISKID (Var.:2/Rev.:0)
An image of parts
33105/00 - HYDRAULIC BRAKE CONTROL WITH ANTISKID (Var.:3/Rev.:0)
An image of parts
33105/00 - HYDRAULIC BRAKE CONTROL WITH ANTISKID (Var.:4/Rev.:0)
An image of parts
33105/00 - HYDRAULIC BRAKE CONTROL WITH ANTISKID (Var.:5/Rev.:0)
An image of parts
33105/00 - HYDRAULIC BRAKE CONTROL WITH ANTISKID (Var.:6/Rev.:0)
An image of parts
33105/00 - HYDRAULIC BRAKE CONTROL WITH ANTISKID (Var.:7/Rev.:0)
An image of parts
33105/00 - HYDRAULIC BRAKE CONTROL WITH ANTISKID (Var.:8/Rev.:0)
codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 7571999 BRAKE COMPENSATOR
01
2 46438681 SPRING M1,M2,M3
01
2 46438681 SPRING M4
01
3 12574211 NUT
01
4 10519421 PLANE WASHER
01
5 10903224 SCREW M6X40
01
6 82435808 BRACKET M2
01
6 60596122 BRACKET M1,M3,M4
01
7 18751524 SCREW M6X70
02
8 12601274 LOCK WASHER
02
