An image of parts

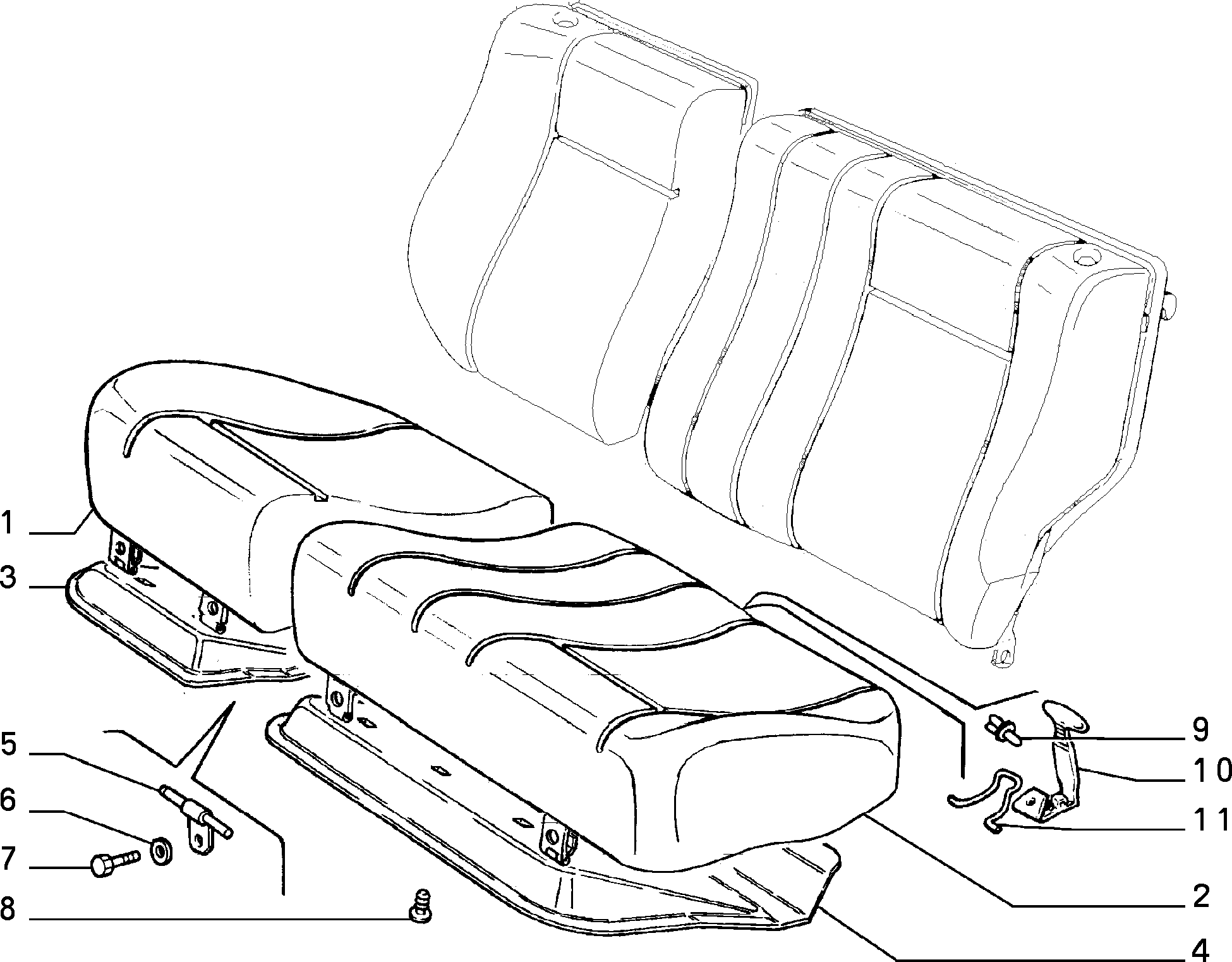

70613/02 - REAR SEAT (Var.:1/Rev.:0)
An image of parts
70613/02 - REAR SEAT (Var.:2/Rev.:0)
An image of parts
70613/02 - REAR SEAT (Var.:3/Rev.:0)
codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 46731882 CUSHION RH
01 NOT COVERED
2 46731883 CUSHION LH
01 NOT COVERED
3 174553060 END PLATE RH
01
4 174554060 END PLATE LH
01
5 7611202 HINGE CENTR
01
6 14499401 PLANE WASHER
04
7 46731712 SCREW
02
8 180276380 BUTTON
10
9 5962559 BUTTON
01
10 82460710 ROD
02
11 82460710 ROD
01
