An image of parts

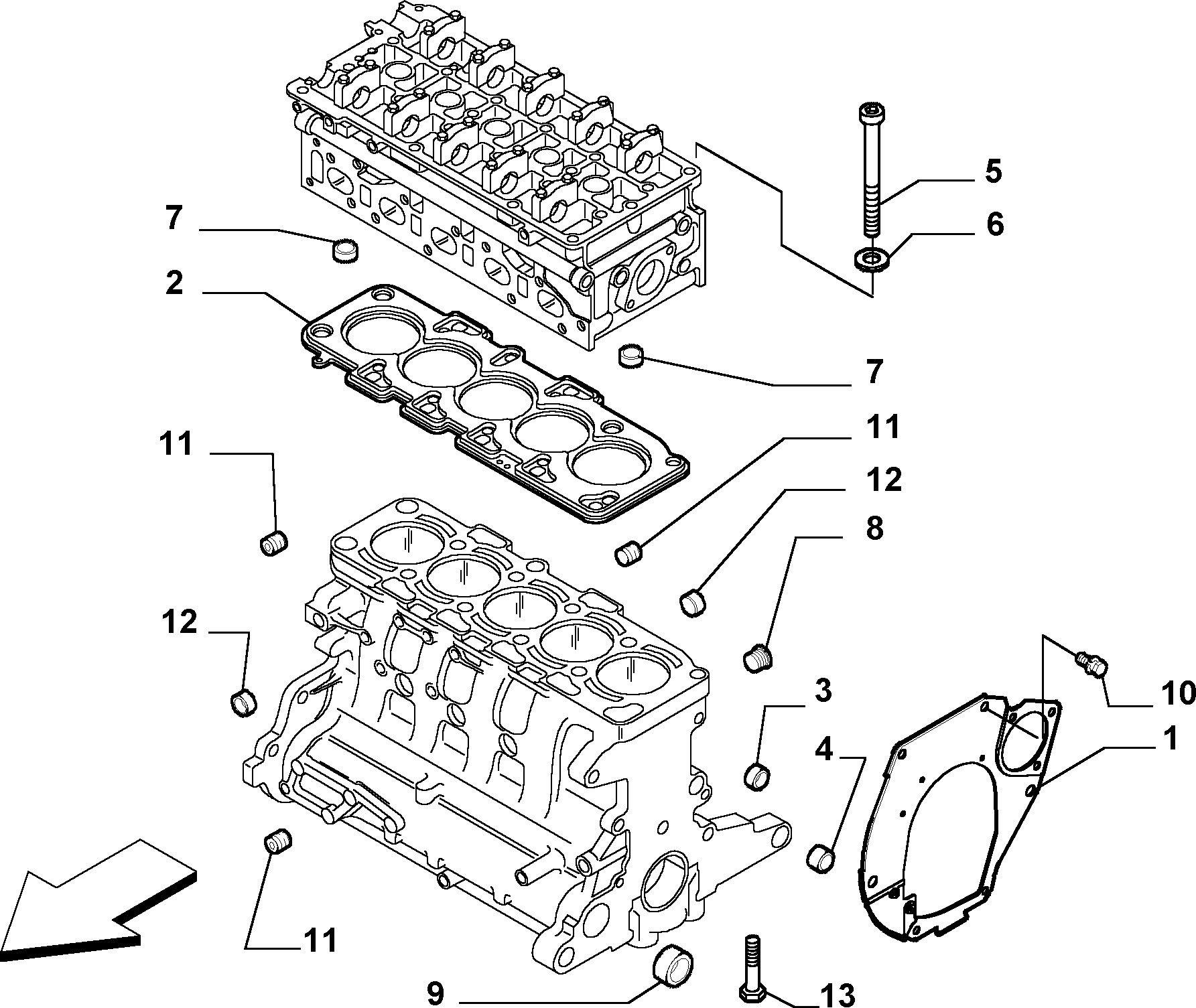

10101/02 - BLOCK AND CYLINDER HEAD (Var.:1/Rev.:0)
An image of parts
10101/02 - BLOCK AND CYLINDER HEAD (Var.:2/Rev.:0)
An image of parts
10101/02 - BLOCK AND CYLINDER HEAD (Var.:3/Rev.:0)
An image of parts
10101/02 - BLOCK AND CYLINDER HEAD (Var.:4/Rev.:0)
codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 55194586 PROTECTION
01
2 46426755 HEAD GASKET
  • C6528
01
2 55192551 HEAD GASKET
  • D6528
01
3 14328501 PLUG DIAM.16
02
4 877205 DOWEL
02
5 7710582 SCREW
12
6 7734963 PLANE WASHER
12
7 46772897 DOWEL DIAM. 14
02
8 11903211 PLUG DIAM. 12X1,25
01
9 7576017 PLUG DIAM. 50
01
10 11577524 SCREW AND WASHERASSY M6X16
02
11 46772896 DOWEL
03
12 14328701 PLUG DIAM. 20
04
13 7730682 SCREW M12X138
12
