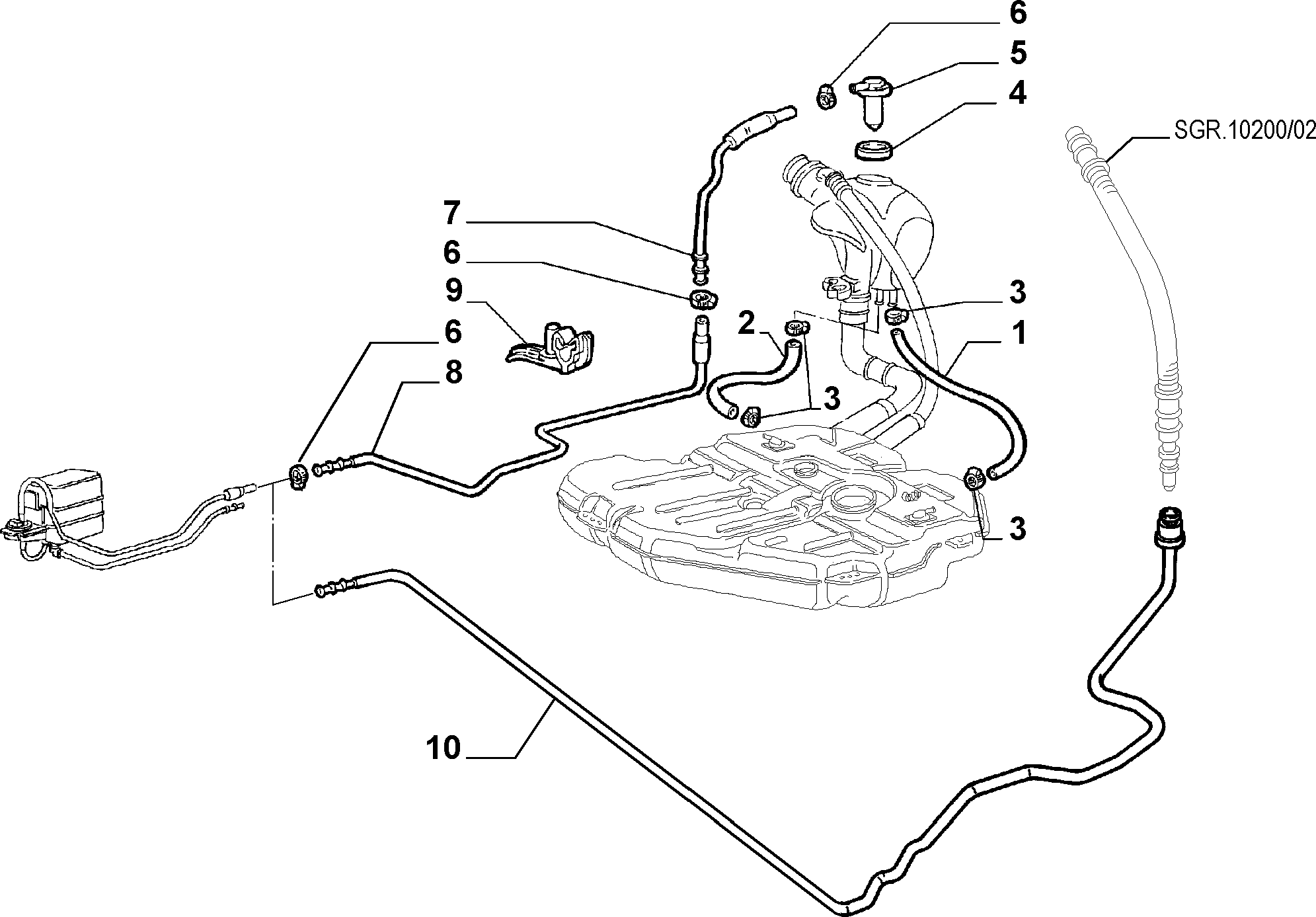

An image of parts
10201/00 - FUEL TANK PIPING (Var.:1/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:2/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:3/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:4/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:5/Rev.:0)
An image of parts
10201/00 - FUEL TANK PIPING (Var.:6/Rev.:0)
codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 7798369 HOSE
  • C3203
01
2 7798368 HOSE
  • C3203
01
3 13125470 COLLAR
  • C3203
04
4 46460849 VALVE
01
5 7700824 SEAL GASKET
01
6 13126970 COLLAR
03
7 82482450 HOSE
  • C3203
01
8 82487132 HOSE
  • C1530
01
8 46444586 HOSE
  • D1530
  • C3203
01
9 82488270 CLIP
04
10 46520543 HOSE
  • D3203
  • C3409
01
10 46538831 HOSE
  • D3409
01
