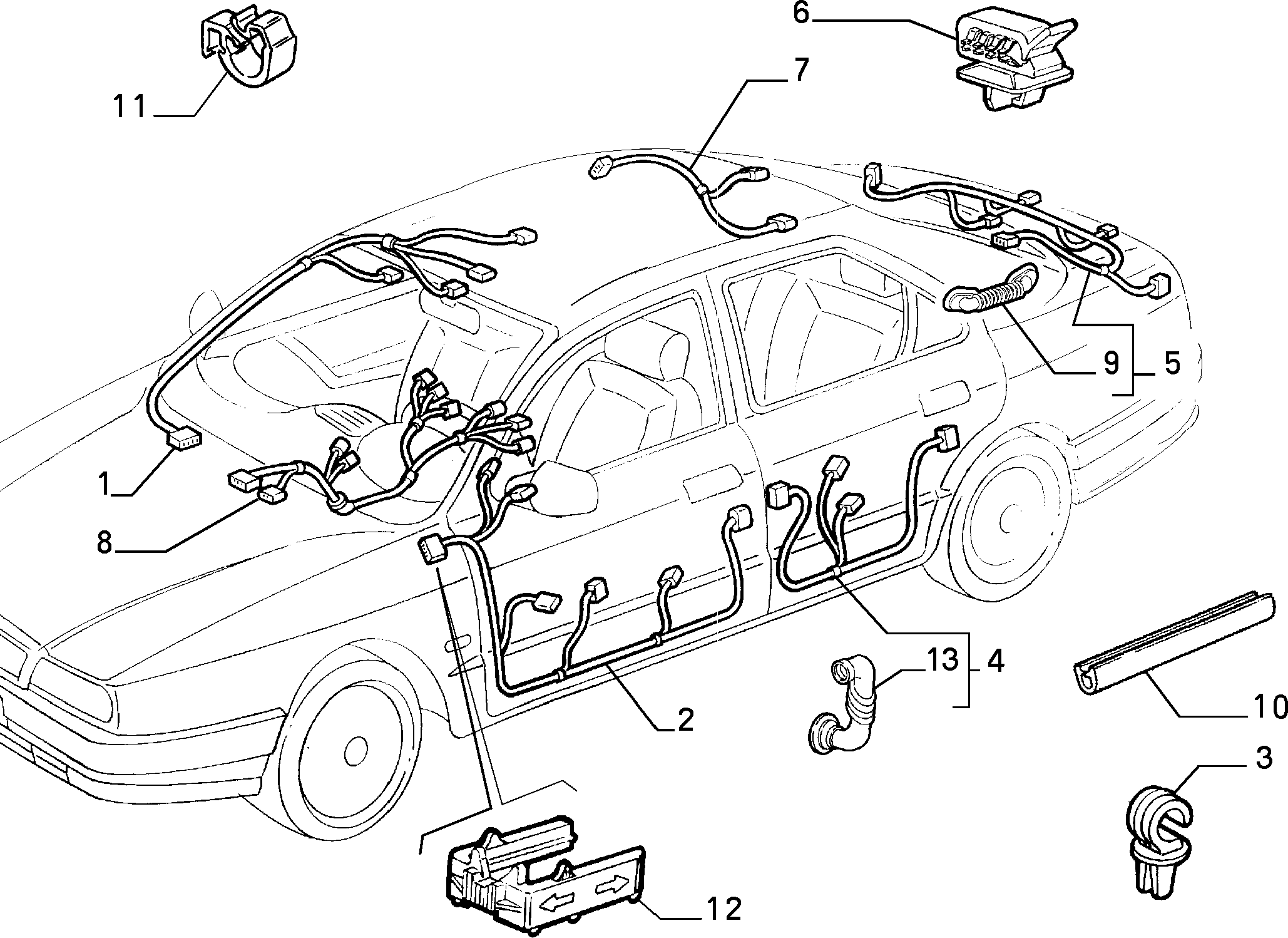

| code | Prod. code | Description | Compat. | Modif. | Qty | Notes | Components | Colour | Reman. |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 82490429 | CABLE HARNESS |
|
01 | |||||
| 2 | 82490434 | CABLE HARNESS FRONT LH |
|
01 | |||||
| 2 | 46469144 | CABLE HARNESS FRONT LH |
|
01 | |||||
| 2 | 82490436 | CABLE HARNESS FRONT RH |
|
01 | |||||
| 2 | 46469146 | CABLE HARNESS FRONT RH | E834 |
|
01 | ||||
| 2 | 60667956 | CABLE HARNESS FRONT RH |
|
01 | |||||
| 3 | 4309803 | CLIP |
|
02 | |||||
| 4 | 82490439 | CABLE HARNESS REAR LH |
|
01 | |||||
| 4 | 82490441 | CABLE HARNESS REAR RH |
|
01 | |||||
| 5 | 82490450 | CABLE HARNESS | V1,V2,V3,V7 |
|
01 | ||||
| 6 | 82487583 | CLIP |
|
06 | |||||
| 7 | 46450466 | CABLE HARNESS | E008,E223 |
|
01 | ||||
| 7 | 46467352 | CABLE HARNESS | E008,E223 |
|
01 | ||||
| 8 | 82490444 | CABLE HARNESS | E007 |
|
01 | ||||
| 8 | 60666275 | CABLE HARNESS | E007 |
|
01 | ||||
| 9 | 82485100 | SEAL GASKET | V1,V2,V3,V7 |
|
01 | ||||
| 10 | 46432883 | CHANNEL |
|
02 | |||||
| 11 | 7642954 | CLIP | E007 |
|
01 | ||||
| 12 | 46420269 | GUIDE |
|
02 | |||||
| 13 | 82481690 | SEAL GASKET RH |
|
01 | |||||
| 13 | 82481691 | SEAL GASKET LH |
|
01 |
