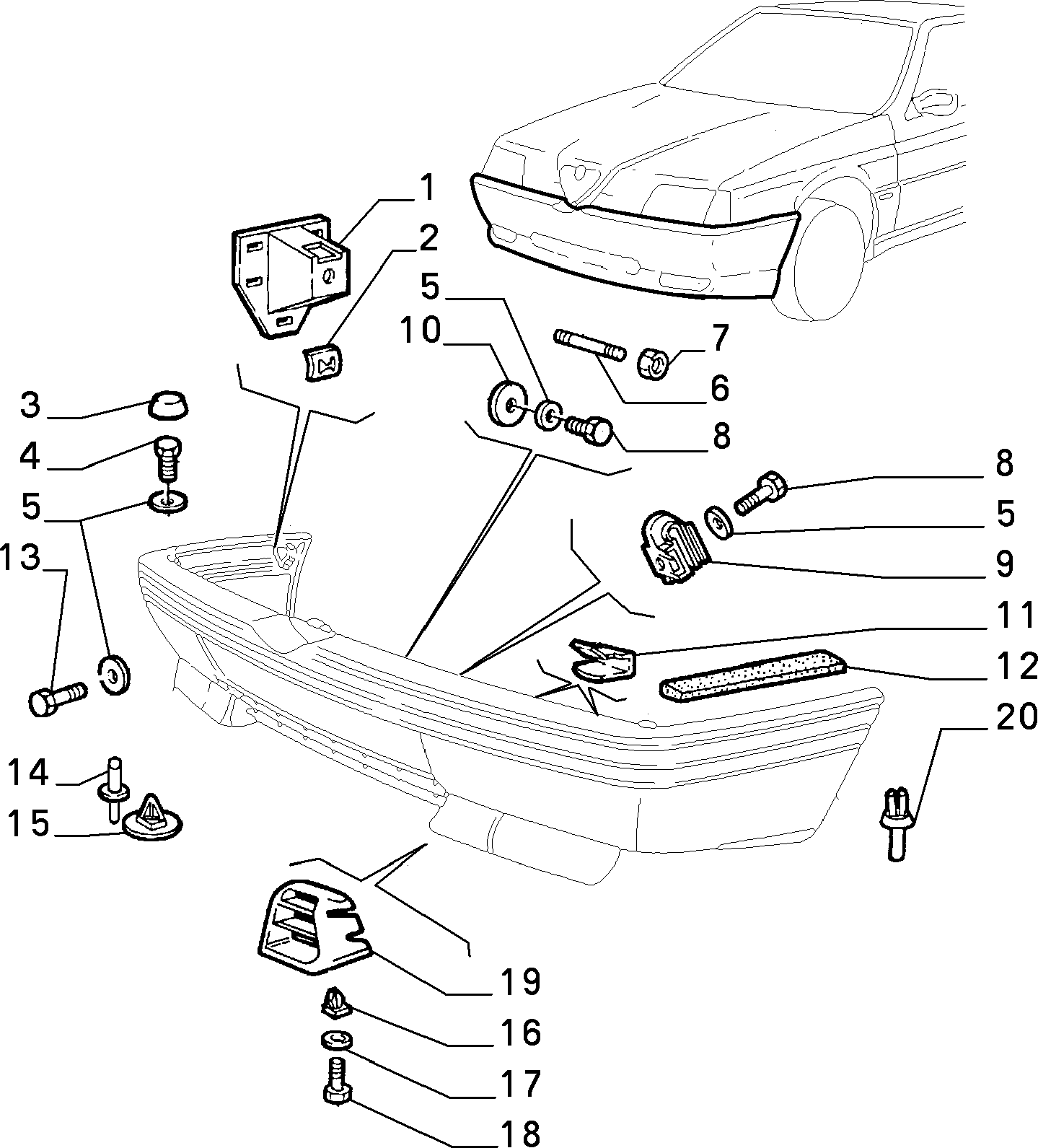

An image of parts
70726/00 - FRONT BUMPER (Var.:1/Rev.:0)
An image of parts
70726/00 - FRONT BUMPER (Var.:2/Rev.:0)
codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 60509791 BRACKET
02
2 50002719 PAD
10
3 60508176 BOOT
03
4 60568836 SCREW
03
5 13577917 PLANE WASHER
09
6 210005104 STUD
  • D169
02
7 60801143 NUT
  • D169
02
8 60568835 SCREW
  • C169
02
9 60509794 BLOCK
02
10 60506915 PLANE WASHER
02
11 60565693 CLIP
12
12 60576422 SEAL GASKET
02
13 10902824 SCREW
02
14 14295991 RIVET
19
15 60506914 PLUG
  • C169
02
16 60800983 PAD
  • D169
04
17 12624178 PLANE WASHER
  • D169
04
18 15901675 SCREW
  • D169
04
19 112232781 ORNAMENT RH
  • C168
01
19 112232881 ORNAMENT LH
  • C168
01
20 60548111 RIVET
04
