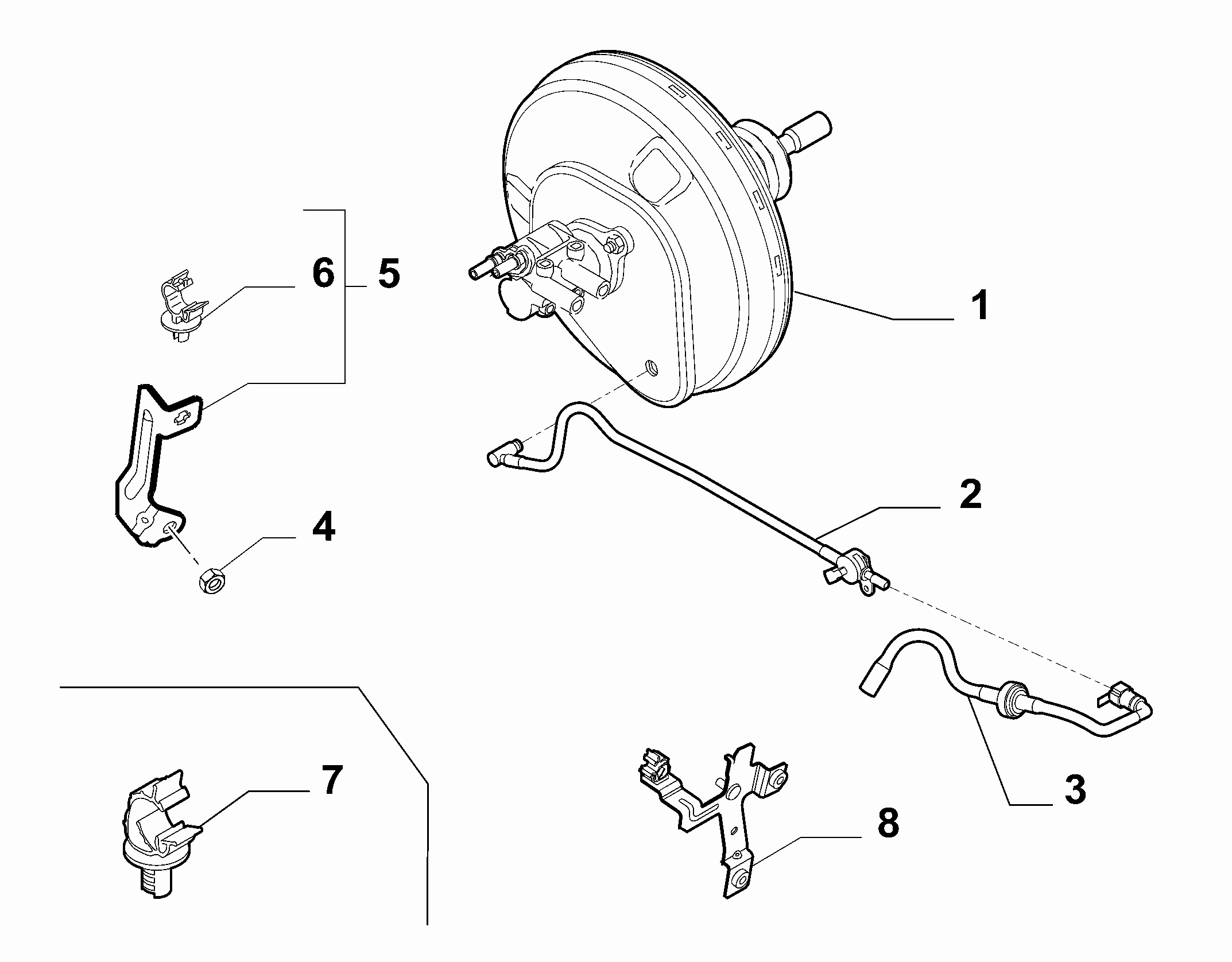

An image of parts
33102/10 - HORSE-POWER (Var.:1/Rev.:0)
An image of parts
33102/10 - HORSE-POWER (Var.:2/Rev.:0)
An image of parts
33102/10 - HORSE-POWER (Var.:3/Rev.:0)
An image of parts
33102/10 - HORSE-POWER (Var.:4/Rev.:0)
codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 51878456 POWER BRAKE A/TASP+392+!4CS
1 Go
1 51878458 POWER BRAKE CC1.4+!052+!392+!4CS
1 Go
1 51878456 POWER BRAKE A/TASP+392+4CS
1 Go
1 51878455 POWER BRAKE CC1.3+392+!4CS, CC1.4+A/TTRB+!222+!4CS
1 Go
1 51878457 POWER BRAKE CC1.3+!052+!392+!4CS, CC1.4+A/TTRB+GDX+!052+!222+!392+!4CS
1 Go
1 51878455 POWER BRAKE CC1.3+392+4CS, CC1.4+A/TTRB+!222+4CS
1 Go
1 51878455 POWER BRAKE CC1.6+!4CS
1 Go
1 51878455 POWER BRAKE CC1.6+4CS
1 Go
1 51878455 POWER BRAKE 222+!4CS
1 Go
1 51878455 POWER BRAKE 222+4CS
1 Go
1 51892733 POWER BRAKE CC1.4+052+!392+!4CS
1 Go
1 51878456 POWER BRAKE CC0.9+392+!4CS
1 Go
1 51878456 POWER BRAKE CC0.9+392+4CS
1 Go
2 51897631 HOSE
1
3 51855935 HOSE KW77
1
3 50520333 HOSE KW99
1
3 51855944 HOSE CC1.6
1
3 50520333 HOSE KW119
1
3 51855933 HOSE CC1.4+VLE8
1
3 50526726 HOSE CC0.9
1
3 51855941 HOSE KW61, KW70
1
4 14059214 NUT M6 KW99,KW119
1
5 51846426 BRACKET KW99, KW119
1
6 46817858 CLIP KW99, KW119
1
7 46804425 CLIP CC1.3, CC1.6
1
7 46804425 CLIP KW99, KW119
1
7 46804425 CLIP KW77
1
7 46804425 CLIP CC1.4+KW51+A/TASP, KW57
1
7 46804425 CLIP CC0.9
1
8 51855947 BRACKET
1
