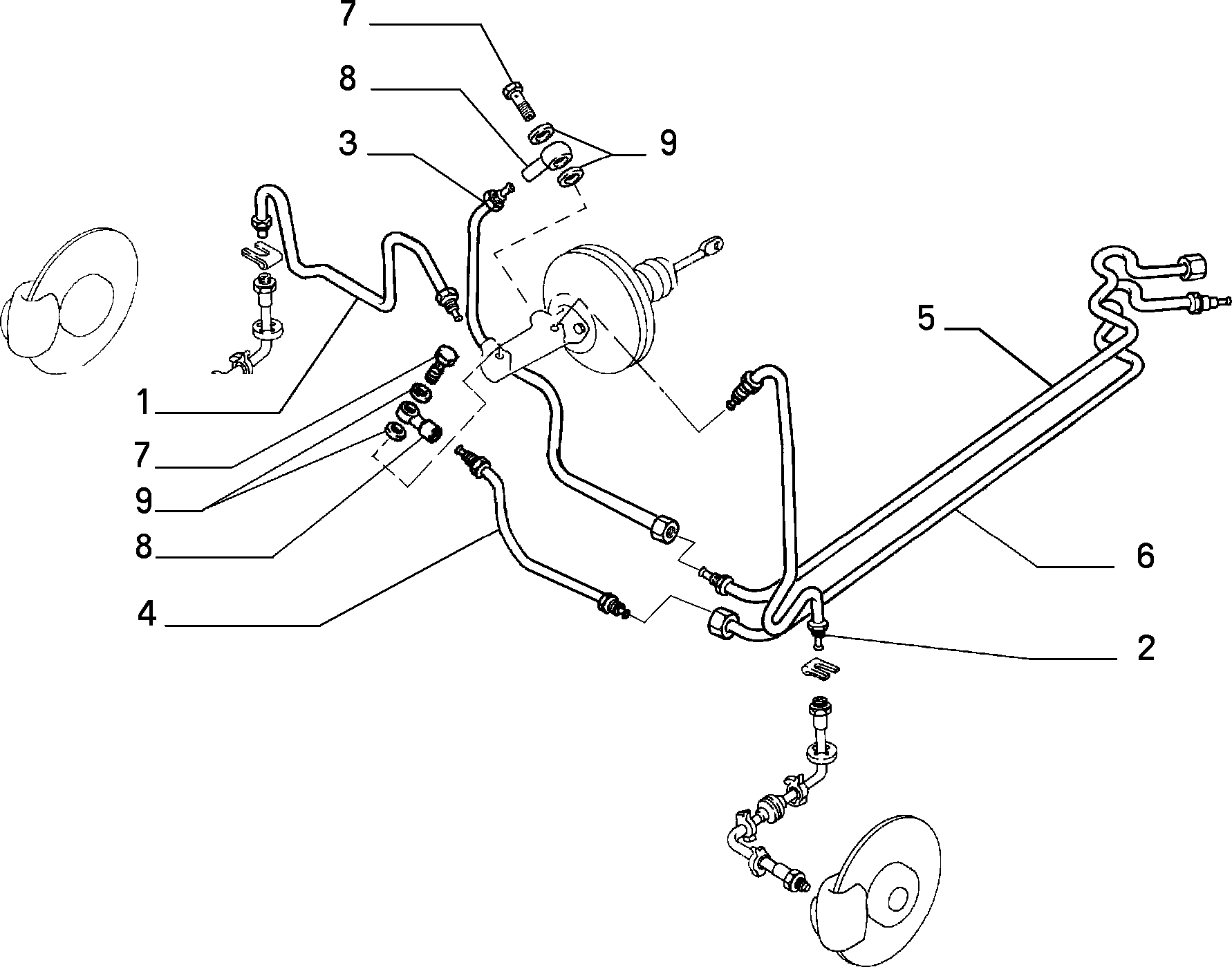

33102/00 - BRAKE HYDRAULIC SYSTEM (Var.:1/Rev.:0)
An image of parts
33102/00 - BRAKE HYDRAULIC SYSTEM (Var.:2/Rev.:0)
An image of parts
33102/00 - BRAKE HYDRAULIC SYSTEM (Var.:3/Rev.:0)
An image of parts
33102/00 - BRAKE HYDRAULIC SYSTEM (Var.:4/Rev.:0)
An image of parts
33102/00 - BRAKE HYDRAULIC SYSTEM (Var.:5/Rev.:0)
An image of parts
33102/00 - BRAKE HYDRAULIC SYSTEM (Var.:6/Rev.:0)
An image of parts
33102/00 - BRAKE HYDRAULIC SYSTEM (Var.:7/Rev.:0)
An image of parts
33102/00 - BRAKE HYDRAULIC SYSTEM (Var.:8/Rev.:0)
codeProd. codeDescriptionCompat.Modif.QtyNotesComponentsColourReman.
1 7754168 PIPE RH GD
01
2 7707083 PIPE LH GD
  • D946
01
3 7788070 PIPE RH GD
  • D946
01
4 7788069 PIPE LH GD
  • D946
01
5 7788072 PIPE RH GD
  • D946
01
6 7788071 PIPE LH GD
  • D946
01
7 10107121 UNION GD
02
8 10103719 CONNECTION GD
02
9 10284450 SEAL GASKET GD
04
